Revel El Jefe Grande 32" Frame Only, Raw

BIG WHEELS. BIGGER POSSIBILITIES.

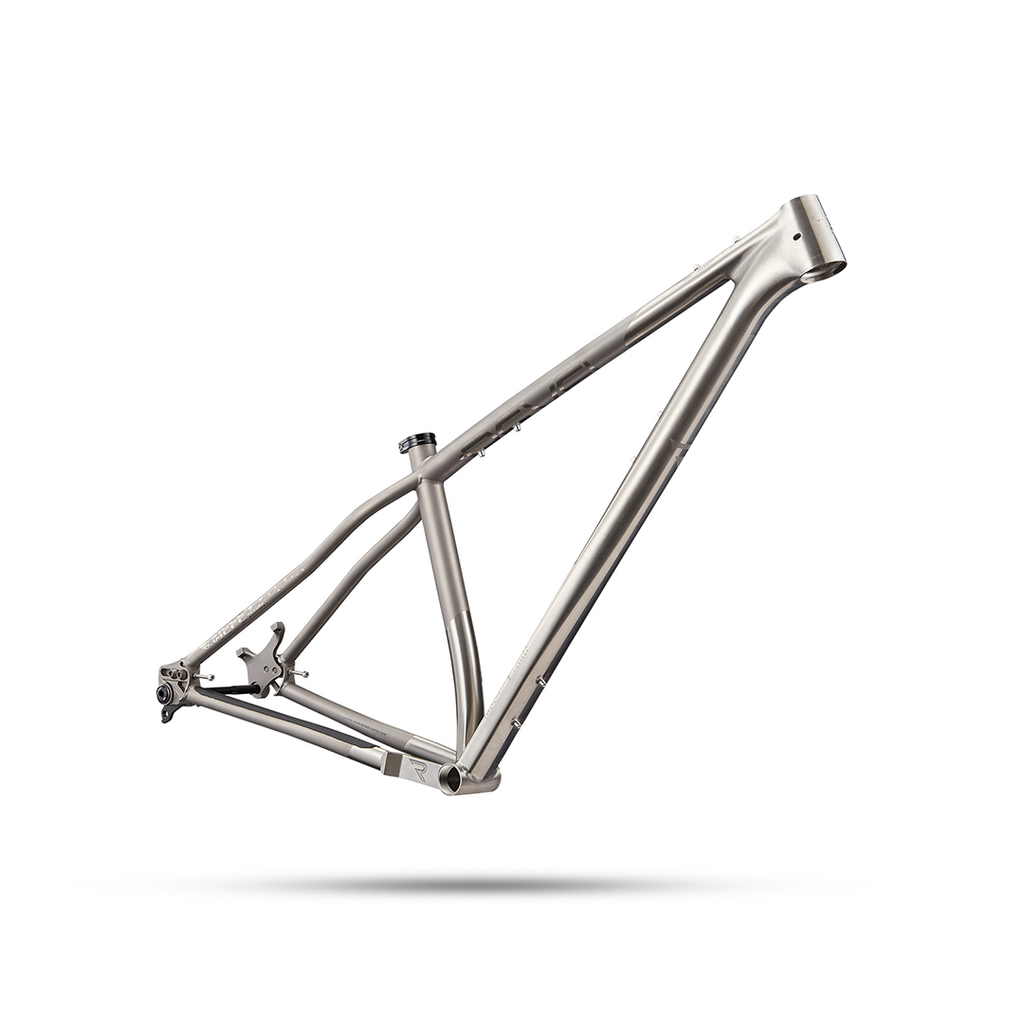

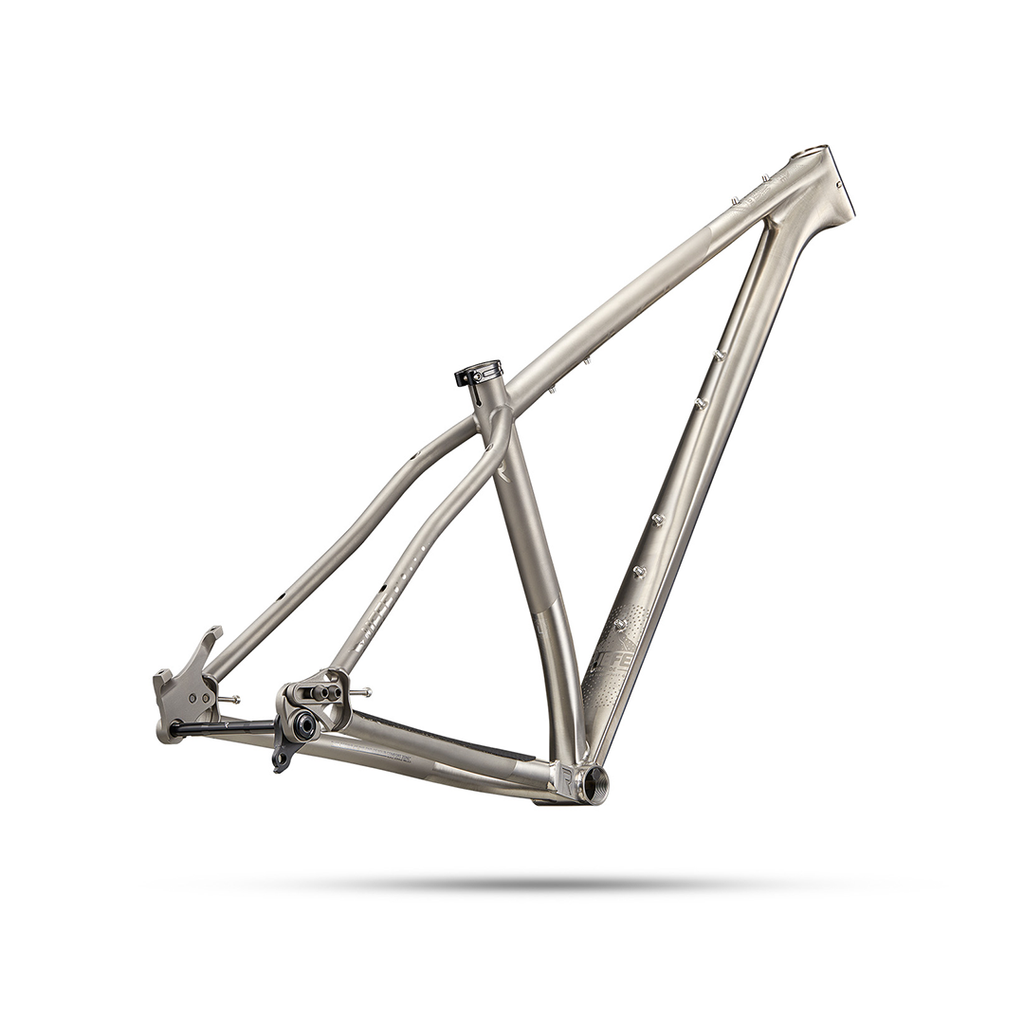

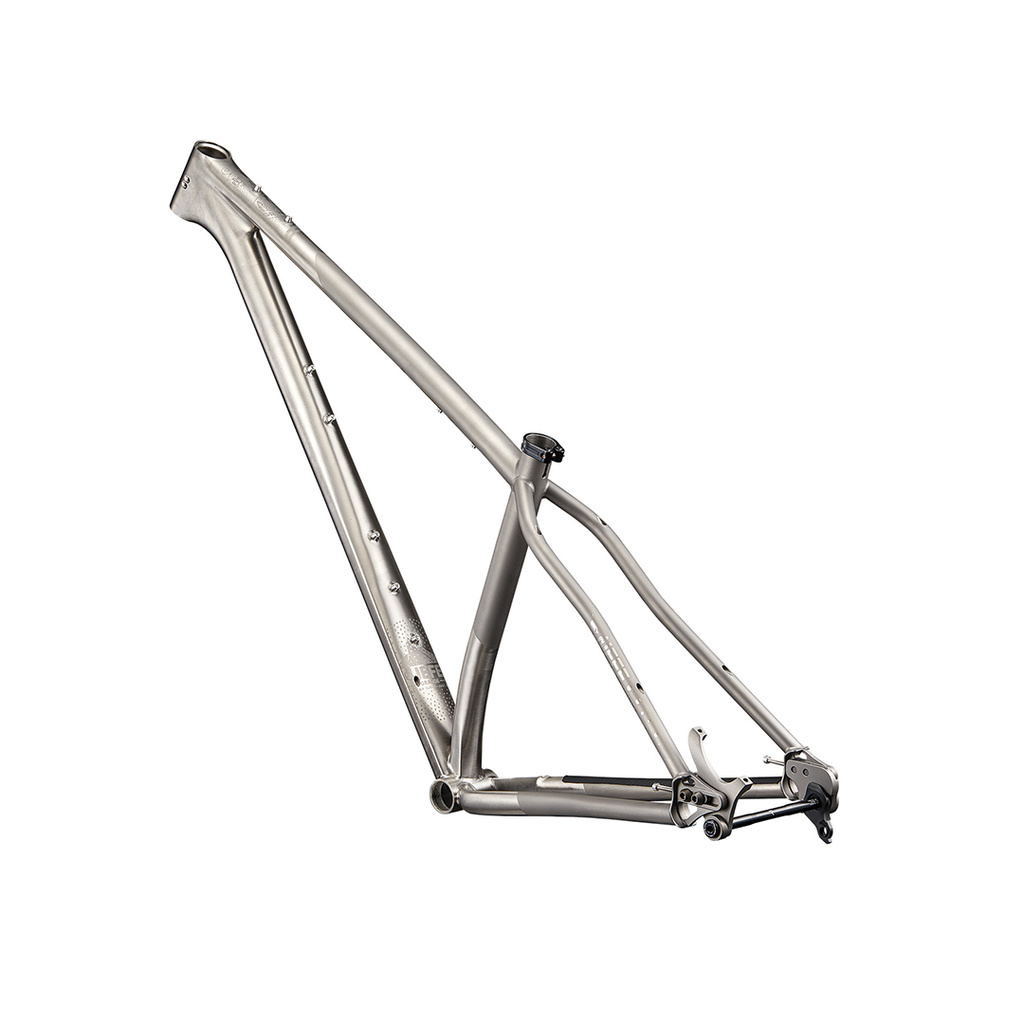

The Revel El Jefe Grande is a titanium XC hardtail designed from the ground up around 32-inch wheels. Medium through XL frames use 32-inch wheels front and rear, while the small pairs a 32-inch front wheel with a 29-inch rear. Built around a 100mm fork, the El Jefe Grande delivers impressive rollover and traction without feeling like an oversized science experiment.

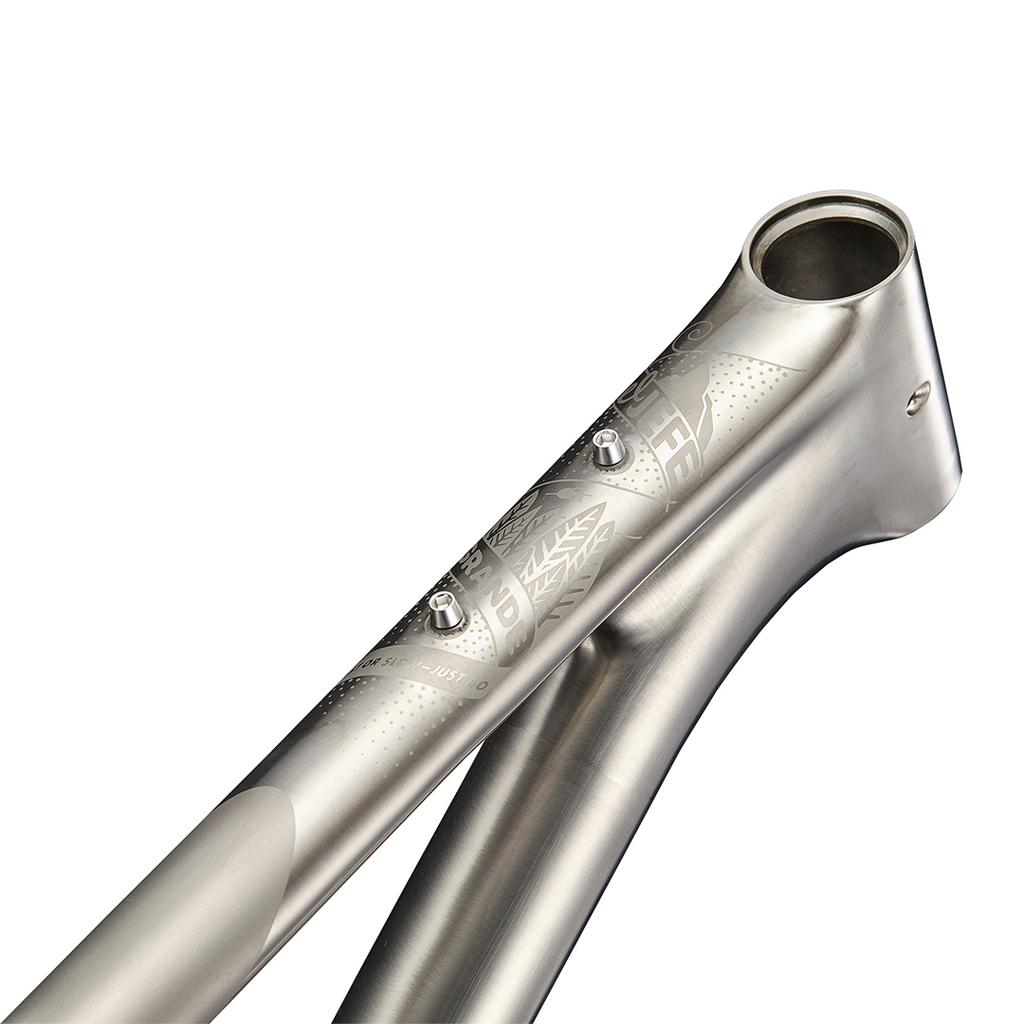

The titanium frame features a burly 3D-printed head tube that is smooth-welded to the top and down tubes, creating a stronger and stiffer front end with clean internal cable routing. UDH-compatible sliding dropouts provide 17mm of adjustment for tuning the wheelbase or running singlespeed, while five sets of bottle and accessory mounts give it plenty of versatility for long trail rides and bikepacking missions.

FRAMEKIT SPECS

• Frame Material: Titanium with 3D-printed head tube
• Fork Compatibility: 100mm travel || 550mm axle-to-crown
• Wheel Size: SM 32"/29" || MD 32"/32" || LG 32"/32" || XL 32"/32"
• Headset Top / Bottom: Top IS42 || Bottom IS52
• Rear Hub Spacing: Boost 12x148mm

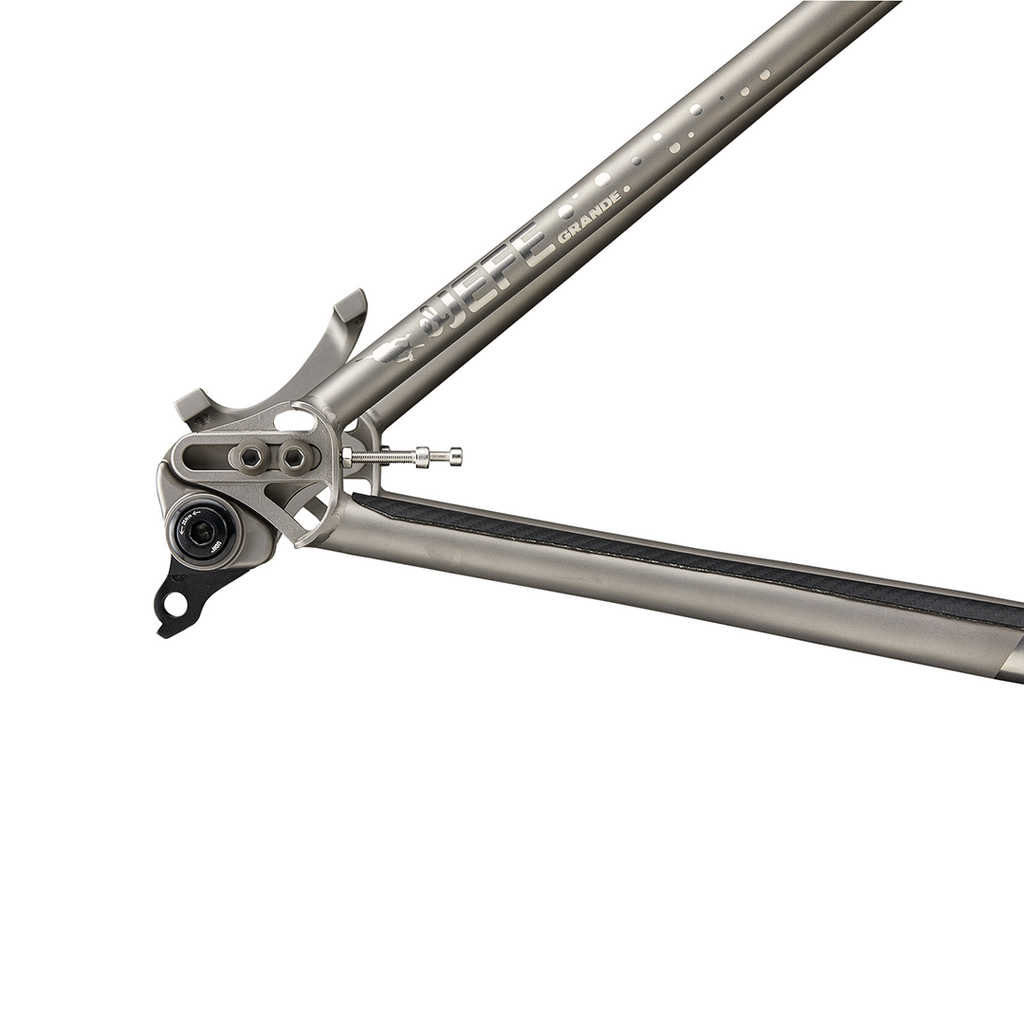

• Dropouts: UDH-compatible titanium sliding dropouts || 17mm adjustment
• Rear Tire Clearance: SM 29" x 2.6" || MD-XL 32" x 2.4"
• Bottom Bracket: 73mm BSA threaded
• Max Chainring: 34T
• Rear Brake Mount: 160mm post mount || 180mm maximum rotor
• Seatpost Diameter: 31.6mm
• Seat Clamp: 34.9mm
• Max Seatpost Insertion: SM 275mm || MD 280mm || LG 285mm || XL 295mm
• Frame Mounts: Five bottle or accessory mounting locations on every size
• Claimed Frame Weight: 4.76 lb / 2.16 kg in size Large
