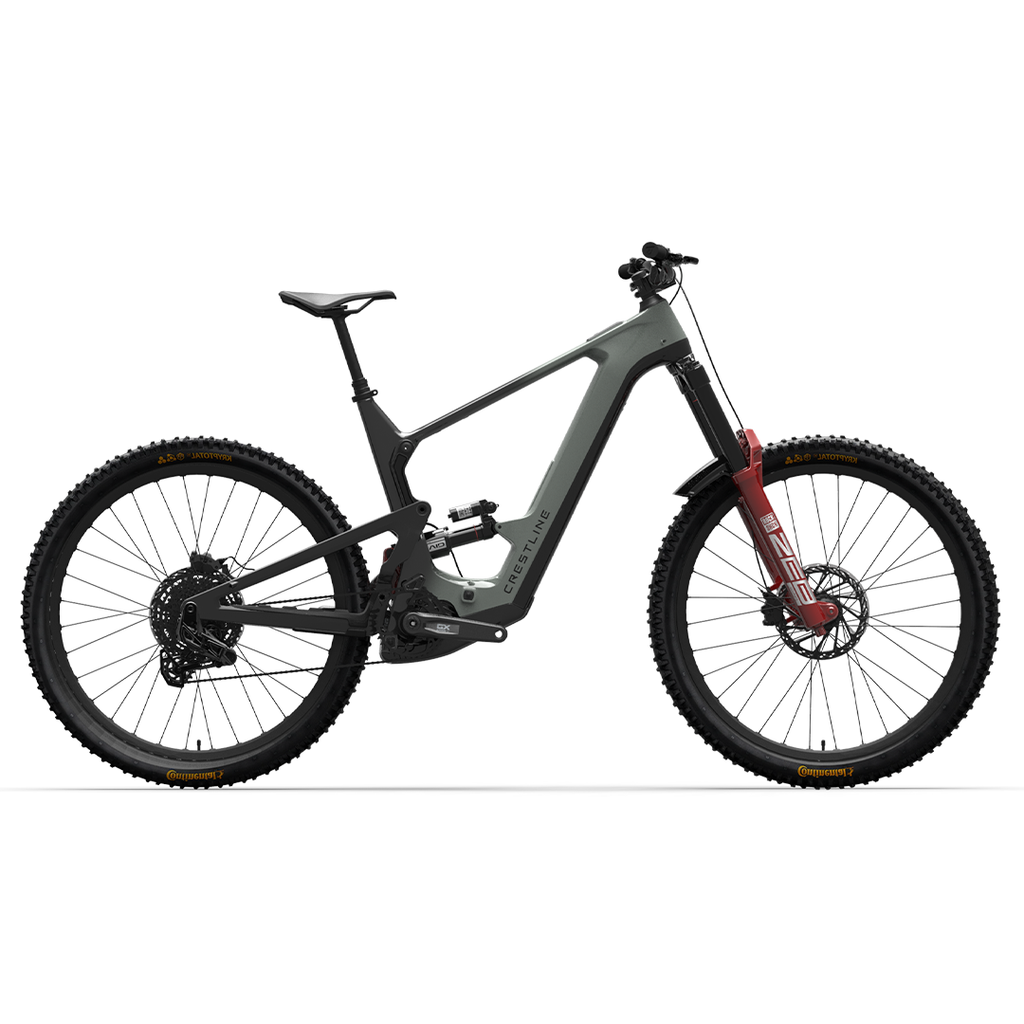

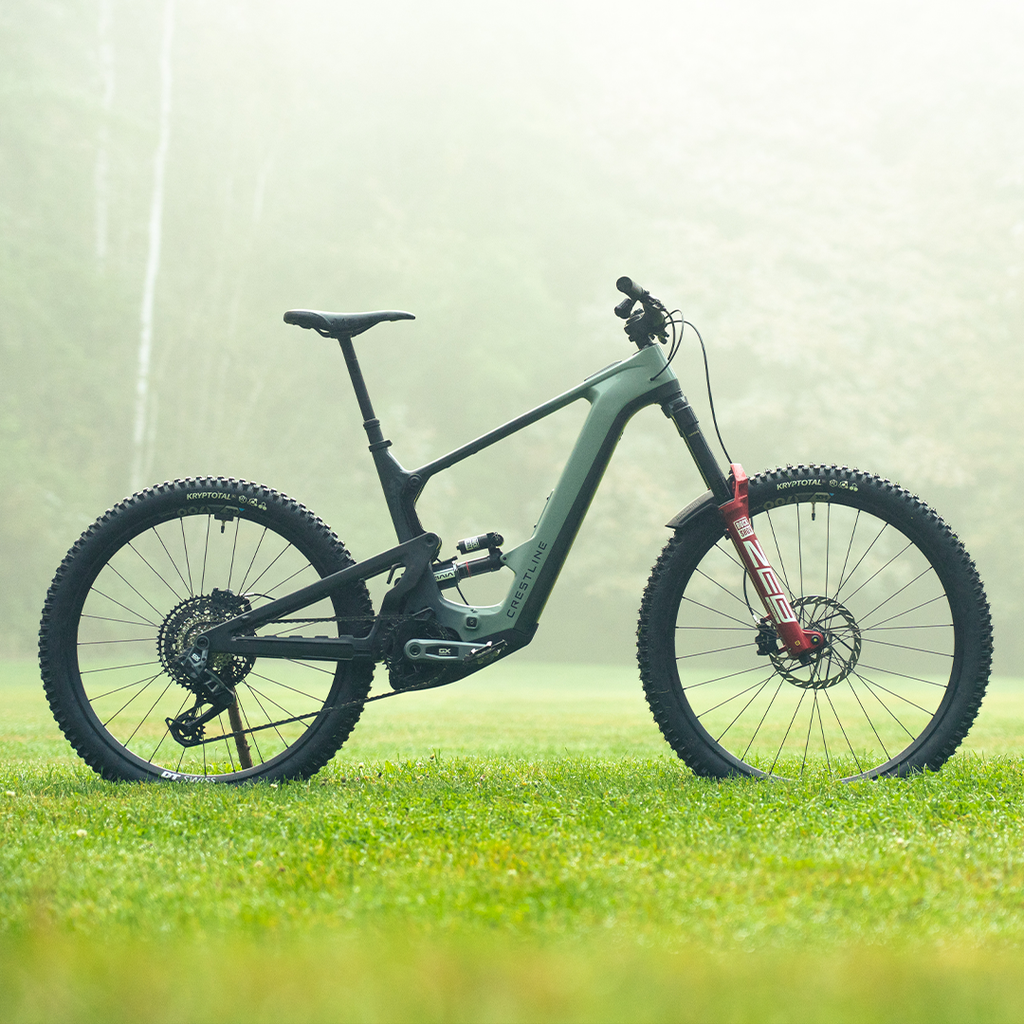

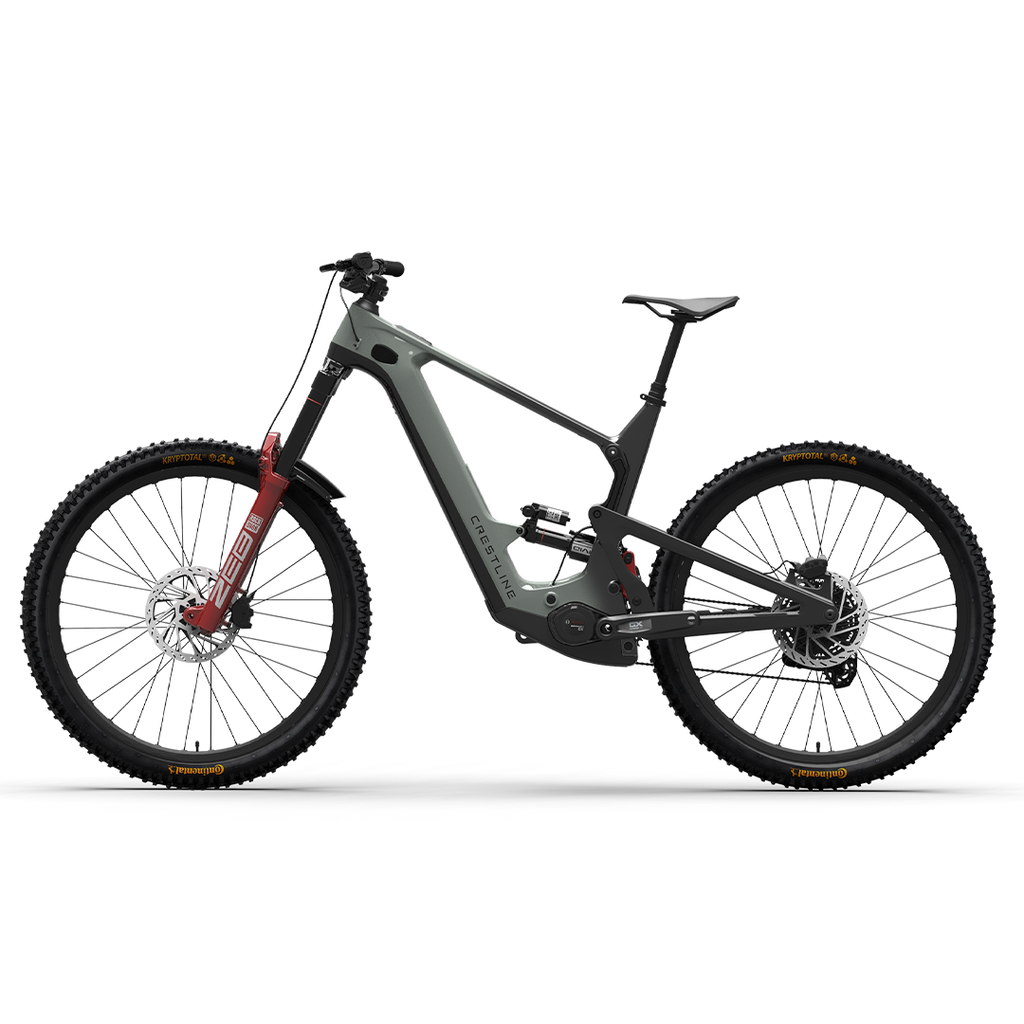

Crestline S 180 Special Edition 2025 - Bosch Motor, 800WH Battery - Gray/Black

*On the cart page, please specify in the notes/special instructions section if you'd like to specify your BB to saddle height so we can cut the cables as nicely as possible or any other minor preferances for the bike. Allow 1-2 weeks for bike to be built and ready to ship or pickup.

180MM REAR TRAVEL / EMTB

The 2025 Crestline S 180 builds on the same frame Crestline has been using, but with a few key updates. It still features the Bosch CS motor, now with the latest upgrades that make it quieter, smoother, and equipped with an updated controller and head unit. For 2025, the S 180 will offer two travel options—160mm and 180mm—along with two battery options: 600Wh and 800Wh. This bike comes with a solid build kit ready to handle any trail, including highlights like the RockShox Zeb Ultimate fork, SRAM Maven brakes, SRAM Transmission drivetrain, and DT Swiss wheels.

Sizing on the Crestline bikes fall into a Rider Height system, with an RH-2, RH-3 & RH-4 size to choose from. The RH-2 will be close to most mediums, RH-3 to most larges and RH-4 like most XL frames. As noted you can install an aftermarket headset to adjust the reach +/- 5mm if you desire.

Specs

• Frame: Crestline Carbon LS 180 frame (180mm rear travel - adjustable down to 150mm)
• Rear Shock: Rockshox Super Deluxe Ultimate Linear XL Air Can
• Fork: Rockshox Zeb Ultimate
• Headset: Works Components Reach Adjust Headset set at +5mm
• Stem: One up Components Stem 42.5mm length
• Bars: One up Components Alloy Bar 35mm rise 800mm wide
• Grips: Trail One Farlow Gap
• Seat Post: OneUp Components V3 Dropper RH-2 (150) RH-2 (150) RH-2 (150)
• Saddle: WTB Silverado saddle
• Brakes: SRAM Maven Silver
• Front Rotor: SRAM HS2 200mm
• Rear Rotor: SRAM HS2 200mm
• Wheels: DT Swiss 1501 Carbon Wheelset
• Front Tire: Continental Kryptotal F
• Rear Tire: Continental Kryptotal R
• Cranks: SRAM XO 155mm Crank Arms
• Chainring: SRAM GX Transmission
• Chain: Sram GX T-Type Eagle, 12s, Powerlock
• Cassette: SRAM GX Transmission, Black
• Rear Derrailleur: SRAM GX Transmission AXS
• Shifter: SRAM Transmission
• Motor: Bosch CXdrive unit with BES3 wireless remote
• Battery: Bosch Powertube 800Wh
