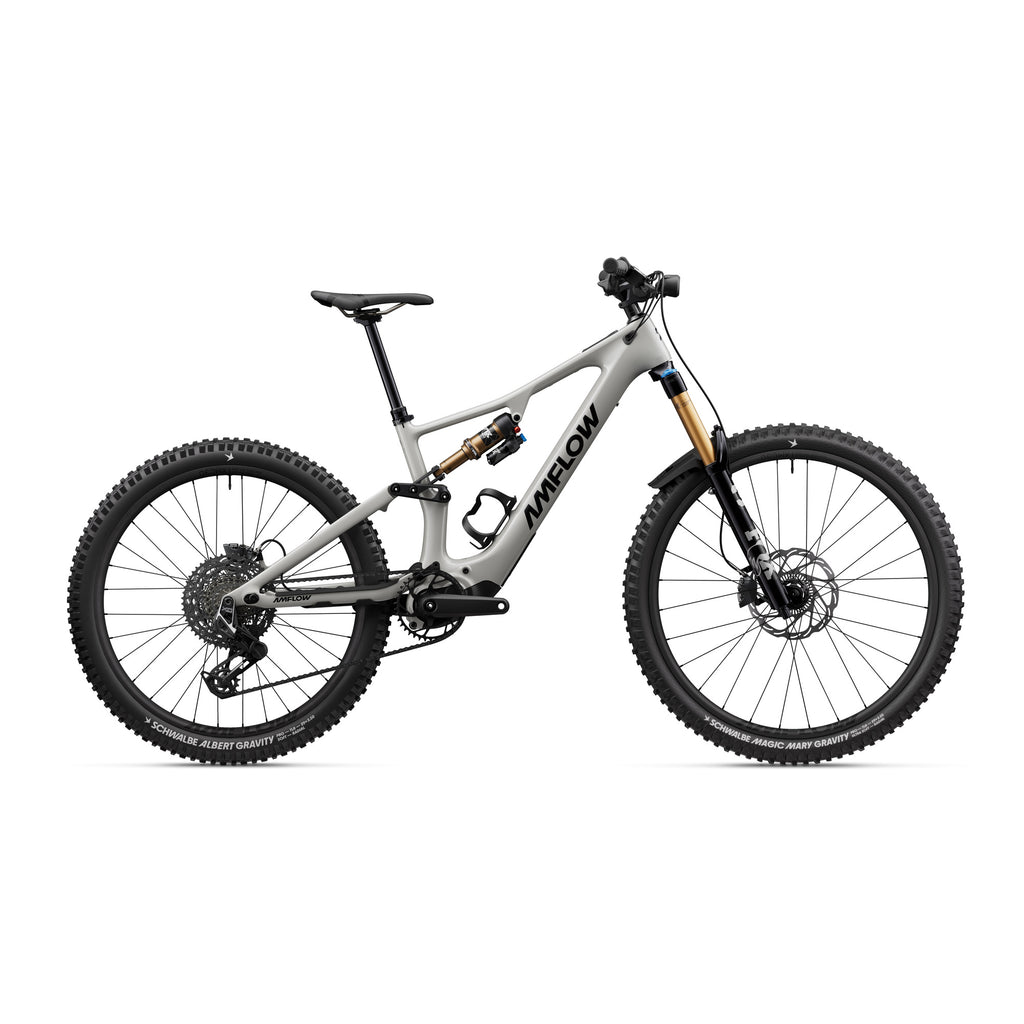

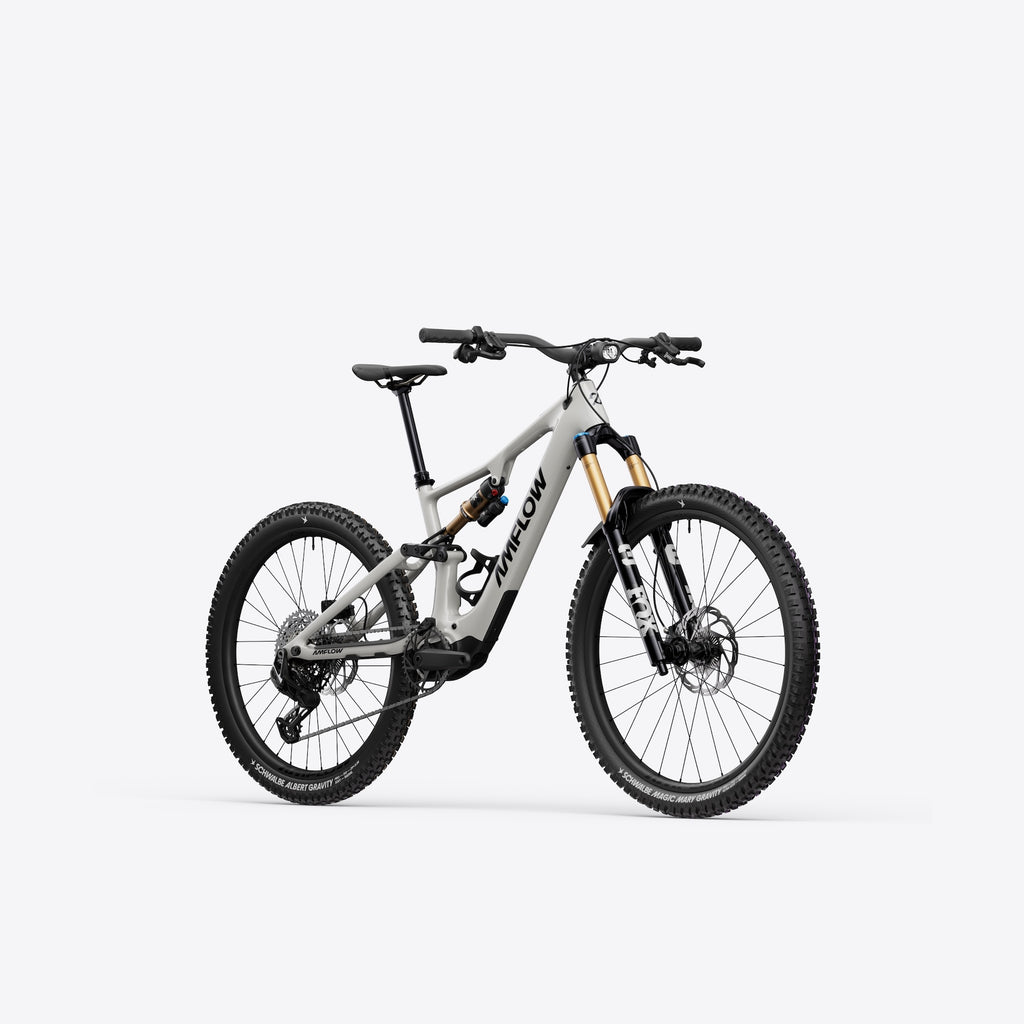

Amflow PX Carbon Pro E-Bike w/ SRAM X0 T-Type AXS Build, 700Wh

AMFLOW PX CARBON PRO takes Amflow’s lightweight full-power e-MTB platform to the next level with the new Avinox M2S drive system, highly adjustable geometry, and a premium trail-ready build. The M2S delivers 130 N·m of nominal torque with up to 150 N·m in Boost mode, while weighing just 2.59 kg. A 700 Wh integrated battery keeps the bike slim and light, helping the size Medium PX Carbon Pro come in at approximately 20.6 kg / 45.4 lb in Amflow’s tubeless test configuration. The carbon frame offers up to 40 geometry combinations through adjustable headset cups, bottom bracket settings, and chainstay length, plus compatibility with both 27.5" and 29" rear wheels. FOX Factory suspension, SRAM X0 Eagle Transmission, Magura Gustav Pro brakes, carbon Amflow wheels, and Schwalbe Radial Gravity tires round out a build designed for aggressive all-mountain riding without giving up the responsive feel of a lightweight bike.

E Component Highlights

• Avinox M2S Drive Unit - 130 N·m nominal torque with up to 150 N·m in Boost mode
• Five Assist Modes - Eco, Trail, Turbo, Auto, and Boost
• 2" OLED Control Display integrated into the top tube
• Avinox Integrated Battery - 700 Wh high-capacity pack
• Avinox Fast Charger - 12A / 508W; approximately 3x faster from 0–80% than the Avinox 168W charger under Amflow laboratory testing
• Dual Wireless Controllers - left and right handlebar controls
• Smart Offline Navigation - supports imported GPX, FIT, and TCX route files with turn guidance and off-course alerts
• Smart Heart Rate Control - automatically adjusts assistance around a selected target heart rate zone when paired with a compatible monitor
• Avinox Ride App - GPS, ride data, OTA updates, Bluetooth connectivity, remote locating, Bike Protection, and customizable assist settings
• Integrated IoT Connectivity - PX Carbon Pro includes an IoT Nano SIM card and free IoT service
• Smart Light Control - wireless controller operation of the integrated lighting system
• Secondary Battery Compatibility - Avinox RS600 secondary battery supported on L, XL, and XXL frames; sold separately

SPECS

• Frame: Amflow PX Carbon Pro carbon frame; Moonstone Gray; compatible with 27.5" and 29" rear wheels; up to 40 geometry configurations using adjustable headset angle, bottom bracket height, and chainstay length
• Geometry Adjustment: Head angle adjustable across 5 positions from -1° to +1°; 2 bottom bracket settings; 4 chainstay settings from 438–451 mm
• Fork: FOX 36 Factory, 160 mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110 mm, 44 mm offset
• Rear Shock: FOX FLOAT X Factory, 210×55 mm air shock, custom tune, 2-position lever, LSC and LSR adjustment
• Wheelset: Amflow XMC-30 Mullet - carbon rims, tubeless-ready; 29" front / 27.5" rear; 30 mm internal width; SAPIM E-Light spokes
• Front Wheel: Carbon, 29", 30 mm internal width, 28H; alloy hub, 2 sealed bearings, 15×110 mm thru-axle, J-bend, 6-bolt
• Rear Wheel: Carbon, 27.5", 30 mm internal width, 32H; alloy hub, 4 sealed bearings, 12×148 mm thru-axle, J-bend, 6-bolt, 6-pawl / 60T engagement, XD driver
• Front Tire: Schwalbe Magic Mary Radial, 29×2.5", Gravity Pro, Ultra Soft, tubeless-ready
• Rear Tire: Schwalbe Albert Radial, 27.5×2.5", Gravity Pro, Addix Soft, tubeless-ready
• Drivetrain: SRAM X0 Eagle Transmission
• Rear Derailleur: SRAM X0 Eagle Transmission
• Shifter: SRAM AXS Pod Rocker Controller
• Cassette: SRAM XS-1295 Eagle Transmission, 10–52T
• Chain: SRAM X0 Eagle Transmission
• Chainring: SRAM Eagle Transmission Direct Mount 38T for Avinox
• Derailleur Power: Avinox M2 Series electronic rear derailleur power cable / SRAM AXS extension cord
• Crankset: Avinox SL - M/L: 155 mm; XL/XXL: 160 mm
• Brakes: Magura Gustav Pro hydraulic disc brakes, 4-piston calipers
• Rotors: Magura Sensor Rotors, 203 mm × 2.5 mm front and rear
• Handlebar: Amflow Enduro Carbon - 40 mm rise, 800 mm width, 35 mm diameter, 5° upsweep / 9° backsweep
• Stem: Amflow Mountain Bike Split Stem - 35 mm length, 35 mm clamp
• Grips: Amflow Enduro Grip 2 Lock-on Grips
• Saddle: Amflow Mountain Saddle Titanium
• Dropper Post: Amflow adjustable dropper with travel-reducing shim - M/L: 190 mm; XL: 210 mm; XXL: 230 mm; travel adjustable in 5 mm increments
• Drive Unit: Avinox M2S - 130 N·m nominal torque; up to 150 N·m in Boost mode; 2.59 kg drive unit weight
• Display: Avinox 2" OLED Control Display
• Battery: Avinox 700 Wh Integrated Battery
• Assist Controls: Avinox wireless left and right controllers
• Charger: Avinox Fast Charger, 12A / 508W
• Approx. Weight: M: 20.6 kg; L: 20.8 kg; XL: 20.9 kg; XXL: 21.1 kg in Amflow’s tubeless test configuration; actual weight may vary
• Accessories: Avinox front light, rear light, Amflow bottle cage, IoT Nano SIM card, adjustable headset cups, chainstay flip-chip hardware, Schwalbe Clik Valve conversion set, FOX 36 short mud guard, dropper travel-reducing spacers, torque wrench, clear frame protection film, shock pump, and Quick Start Guide

** Spec, price & weight information subject to change without notice. **

*Allow 1–2 weeks for bike to be built and ready to ship or pickup.
