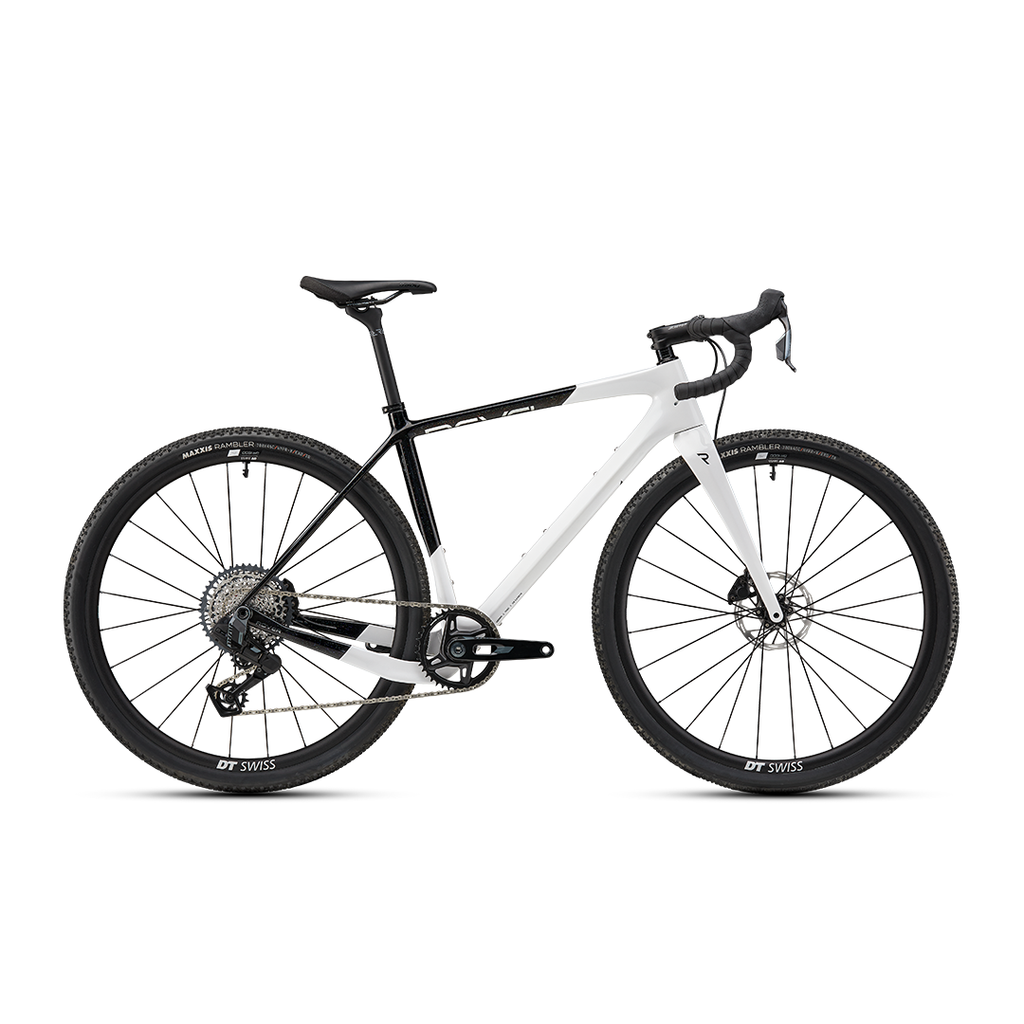

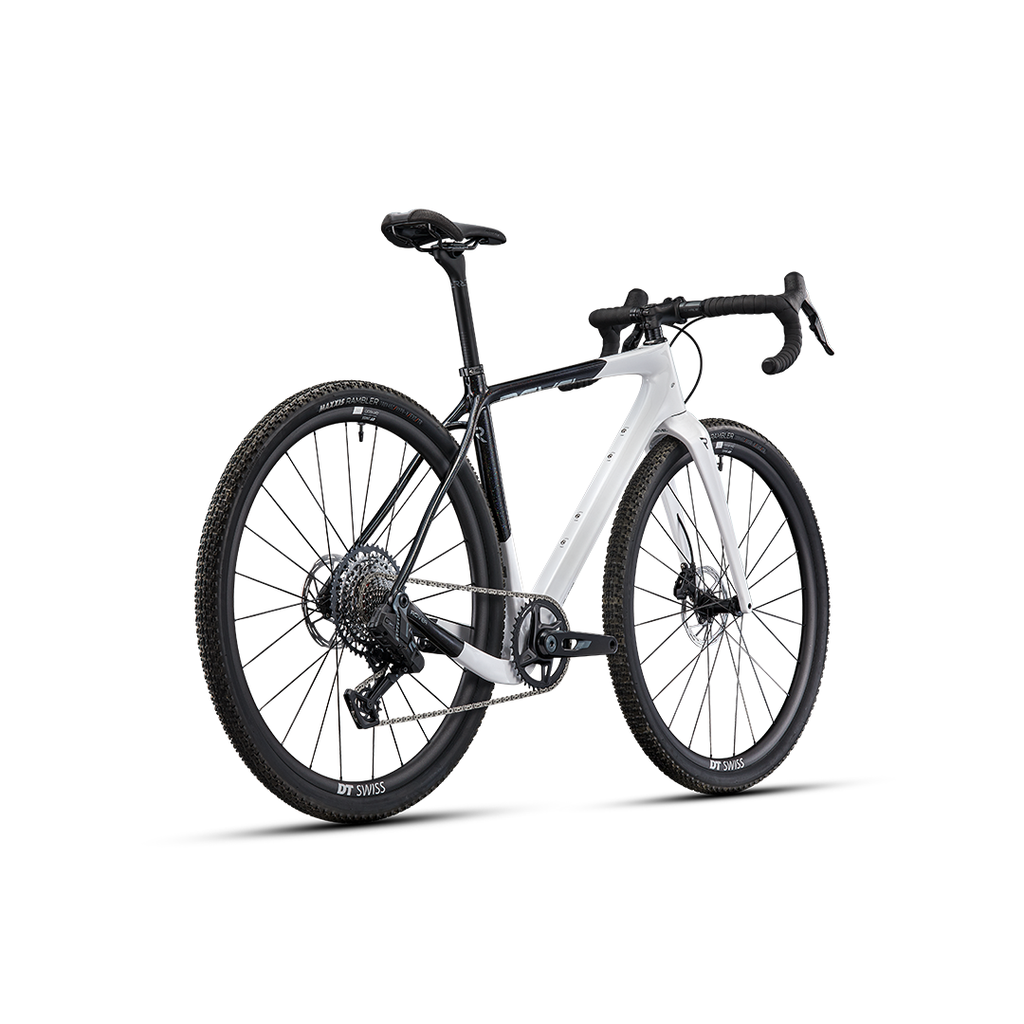

Revel Rover Gravel Complete w/ SRAM Rival, Sin City White

FASTER. LIGHTER. BETTER.

The Revel Rover is Revel Bikes’s take on a true “do-it-all” carbon gravel machine, built to feel at home in the dirt whether you’re lining up for a fast group rip or disappearing down a maze of backroads. Designed and engineered in Carbondale, the Rover pairs modern gravel geometry with a purpose-built carbon frame and fork tuned to take the edge off long days in the saddle, without dulling that quick, lively feel you want when the pace turns up.

Where it really separates itself is smart capability: massive clearance for 700x50c tires while keeping 420mm chainstays for snappy acceleration, plus a dedicated 1x layout with room for up to a 50T chainring. It’s also future-proofed with SRAM UDH, uses fully guided internal routing for a clean, quiet build, and comes loaded for big missions with four sets of bottle bosses (and dropper routing if you want it).

• Hub Spacing: 12x100mm front / 12x142mm rear
• Brake Mount: Flat Mount 140mm direct / 160mm max
• Headset Top / Bottom: Top IS42|Bottom IS52
• SeatPost Size: 27.2mm
• Seat Clamp: 31.8mm
• Bottom Bracket: BSA 68mm English Threaded

SPECS

• Fork: Revel Rover Carbon Fork
• Wheelset: DT Swiss GR 1600 SPLINE Alloy
• Headset: Cane Creek 40 Series IS52/42
• Shifter: SRAM Rival XPLR E1
• Derailleur: SRAM Rival XPLR E1
• Cassette: SRAM XPLR XG1351 10-46t
• Chain: SRAM Rival XPLR E1 118L
• Crankset: SRAM Rival XPLR E1 172.5 42t
• Brakes: SRAM Rival XPLR E1
• Rotors: SRAM Paceline 160mm
• Seatpost: Revel Carbon 27.2x400
• Sasddle: SDG Bel-Air Lux-Alloy
• Bar: Zipp Service Course SL 70 XPLR
• Stem: Zipp Service Course SL 90mm
• Grips: Velo Grip Tape
• Front Tire: Maxxis Rambler 700x45c Hyper-X/EXO/TR
• Rear Tire: Maxxis Rambler 700x45c Hyper-X/EXO/TR
